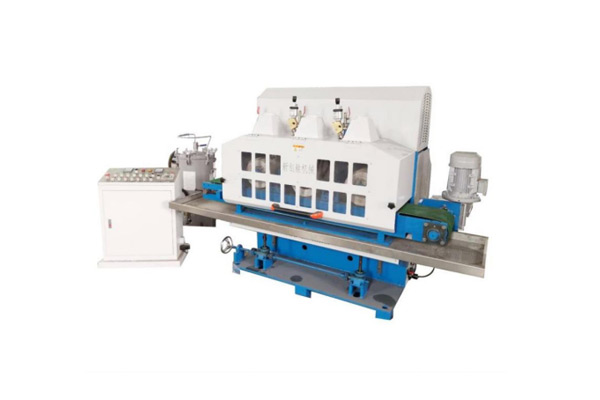

Three groups of conveying nylon wheel swing wire drawing machine produced by Dongguan xinmeisheng machinery manufacturer, machine model: ms-p325n

Wire drawing machine is mainly used for metal surface treatment. The machine adopts physical properties, so that the performance of the workpiece is not changed while polishing. There are basically two kinds on the market, one is a stainless steel polishing machine for large-scale plane treatment, and the other is a portable wire drawing machine, which is used for pattern recovery and scratch repair of irregular products after welding. The products have different uses, Different products are provided according to the needs of different environments.

Product parameters
1. Main motor: 3kw-4 level = 3 sets, grinding wheel speed: 1400 rpm
2. Grinding wheel specification: 250 * 250 * 50 (outer diameter * thickness * inner hole, unit: mm)
3. Conveying speed: 1 to 14 m / min (the conveying speed is adjustable)
4. Conveying motor: rv90, 1:50 / 2.2kW = 1 set (aluminum shell gear reduction motor)
5. Grinding wheel lifting motor: rv50, 1:30 / 370W = 3 sets (aluminum shell gear reduction motor)
6. Lifting height: 1 to 100mm
7. Processing range: above 300 * within 250 * 100mm (length * width * height)
8. Overall dimension: 2600 * 1500 * 1700mm (length, width and height)
9. Total power of the machine: 15kw. （380V，50HZ）
10. Each grinding head can be lifted and lowered independently, and the movable control box

11. Automatic wax spraying system (for polishing) and water grinding system (for wire drawing)

Characteristic:

The material is pressed by the cylinder, the wire pattern is clear and obvious, the pressing pressure of the cylinder is uniform, and the straight wire can be elongated.

Application scope of the machine:
1. This machine is suitable for wire drawing and polishing of metal surface.
2. The machine is equipped with steel wheel, which can polish the rust spots on the surface of steel profile.
3. The machine is equipped with nylon wheel and flying wing wheel, which can carry out fine wire drawing treatment on the surface of steel profile.
4. Equipped with hemp wheel and cloth wheel, it can polish the surface of metal profile.

Manufacturer

Dongguan xinmeisheng machinery factory, which produces three groups of conveying nylon wheel swing wire drawing machine ms-p325n, is a well-known enterprise focusing on the R & D, production and sales of semi-automatic, full-automatic polishing machine, wire drawing machine, polishing machine and other hardware surface treatment equipment. Provide customers with the R & D and production of various special-shaped parts polishing equipment. Welcome customers to proofing and ask for polishing solutions.
